- Manufacturer: RTE ASEA
- Asset ID: POW-002
- kVA Range: 39000 - 72000
- Category: Power
Description

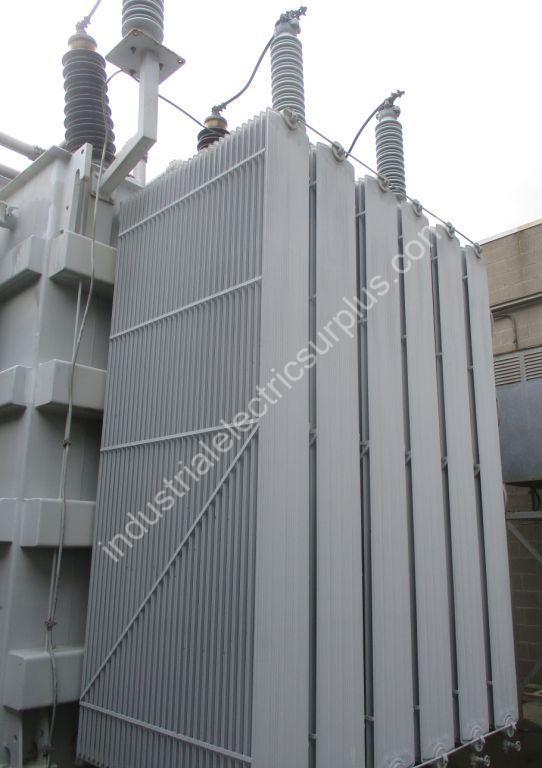

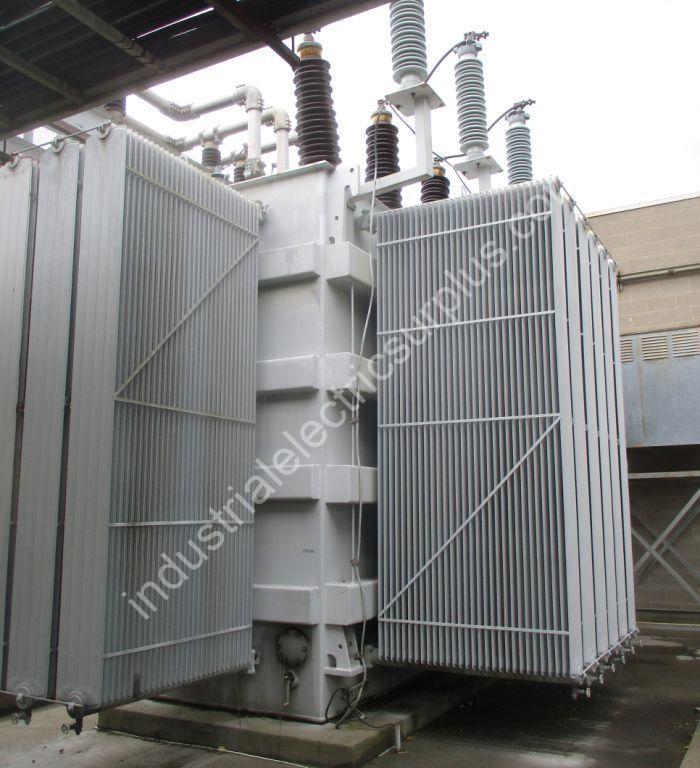

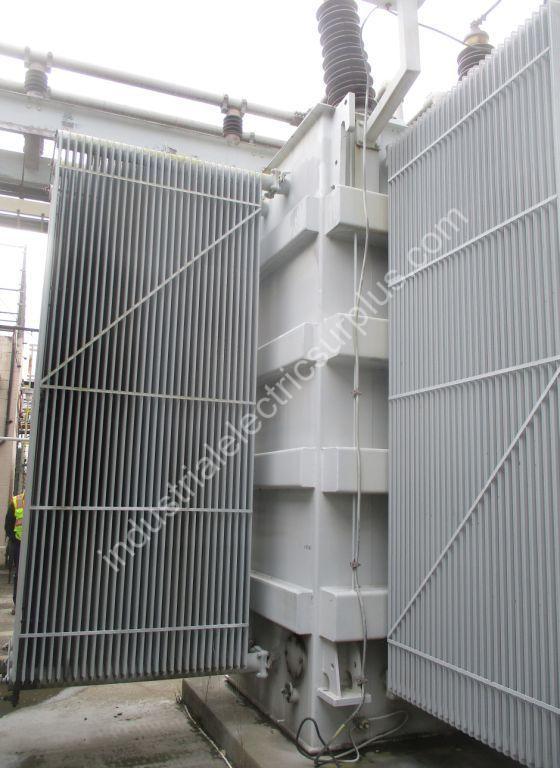

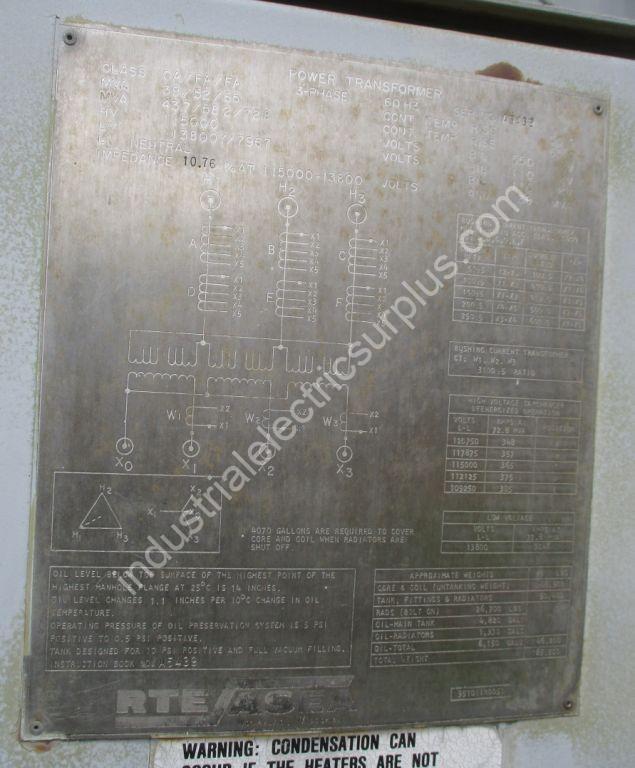

- RTE ASEA Power Transformer
- 39/52/65 MVA
- 43/58/72 MVA
- Primary: 115,000 Delta with taps - BIL 550 kV
- Secondary: 13,800 Y/7967 @ 3046 Amps - BIL 110 kV
- 3 Phase
- 60 Hertz
- Class OA/FA/FA
- Impedance 10.76 %
- Rise 55/65 C
- Mineral Oil
- HV Bushings - 3 Top Cover Mounted
- LV Bushings - 4 Top Cover Mounted
- Delta Wye Configuration
- HV Bushings: C400 Acc. Class Multi-Ratio CT's 2 Sets per Bushing
- LV Bushings: Single Set CT Ratio 3100:5 on W1, W2, W3
- Standard Gauges & Valve Package

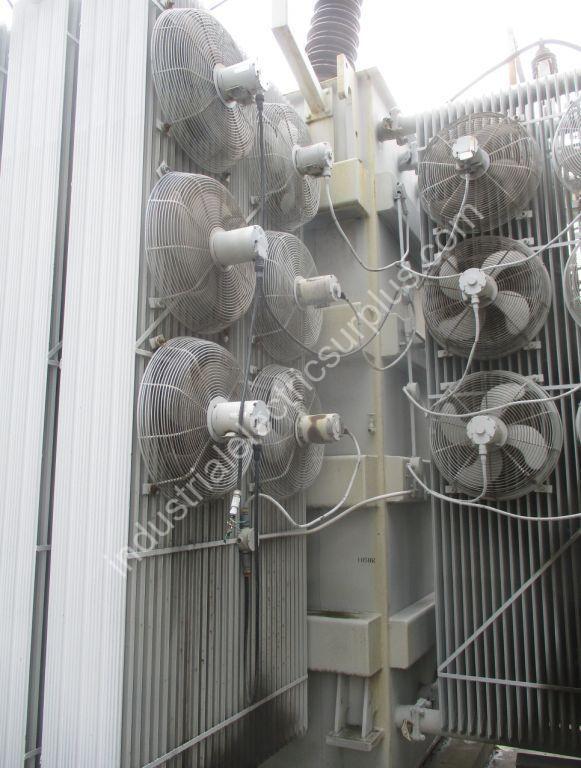

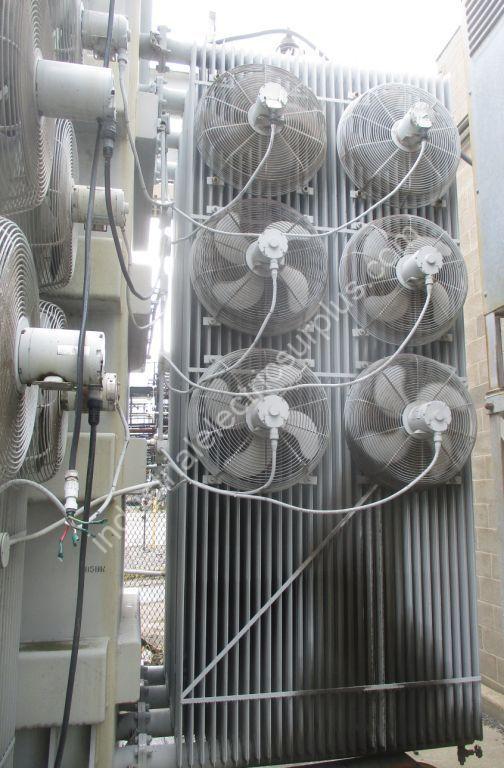

- Fans and Fan Controls
- Included Control Box with relays
- HV Taps:
- 1. 120,750 Volts @ 348 Amps
- 2. 117,875 Volts @ 357 Amps
- 3. 115,000 Volts @ 365 Amps
- 4. 112,125 Volts @ 375 Amps
- 5. 109,250 Volts @ 385 Amps
- Shipping Weight (Main Tank less oil) = 96,000 lbs.
