- Manufacturer: ABB
- Asset ID: DRY-002
- kVA Range: 3750 - 6750
- Category: Dry
Description
- Unused Surplus
- ABB Dry-Type Secondary Unit Substation Transformers
- 3750 KVA - AN - 80 C
- 5063 KVA - AN - 150 C
- 6750 KVA - AF - 150 C
- Primary: 24,900 Delta with standard straddle no load taps, - BIL 110 kV
- Secondary: 480Y/277 @ 8119 Amps Max. - BIL 10 kV Type VPI
- 3 Phase
- 60 Hertz
- Class AN / AN / AF
- Impedance 6.99%
- Rise 80 / 150 / 150 C
- All COPPER Windings
- NEMA 1 Ventilated Indoor Enclosure

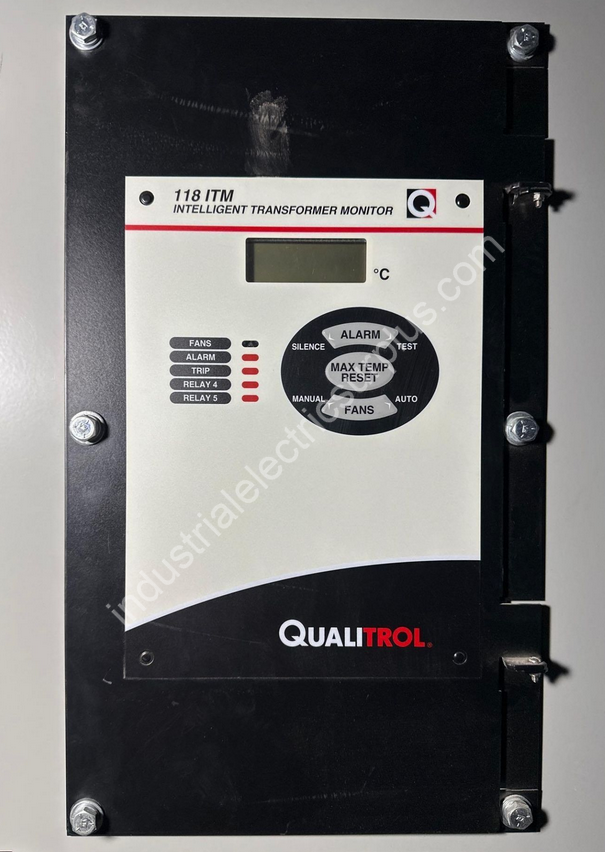

- Fan and Fan Controls Included
- UL Listed
- Manufactured 2022
- High Voltage Taps:
- 1. 26,145 Volts
- 2. 25,523 Volts
- 3. 24,900 Volts
- 4. 24,278 Volts
- 5. 23,655 Volts
- Weight: 29,000 lbs. each
