3750/6750 KVA ABB Dry-Type Unit Substation Transformers 24,900 Delta - 480Y/277

---

• Manufacturer: ABB
• Asset ID: dry-001
• Category: Dry Type

---

Description

• Unused Surplus

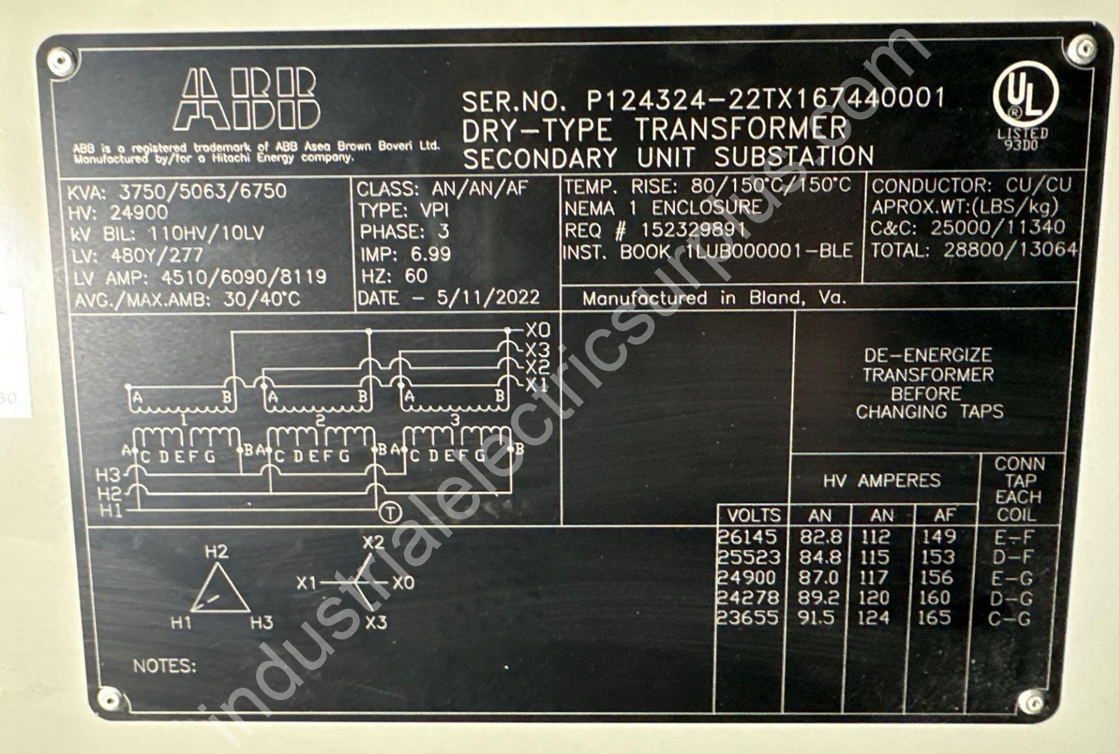

• ABB Dry-Type Secondary Unit Substation Transformers
• 3750 KVA - AN - 80 C
• 5063 KVA - AN - 150 C
• 6750 KVA - AF - 150 C
• Primary: 24,900 Delta with standard straddle no load taps - BIL 110 kV
• Secondary: 480Y/277 @ 8119 Amps Max. - BIL 10 kV Type VPI
• 3 Phase, 60 Hertz
• Class AN / AN / AF
• Impedance 6.99%
• Rise 80 / 150 / 150 C
• All COPPER Windings
• NEMA 1 Ventilated Indoor Enclosure

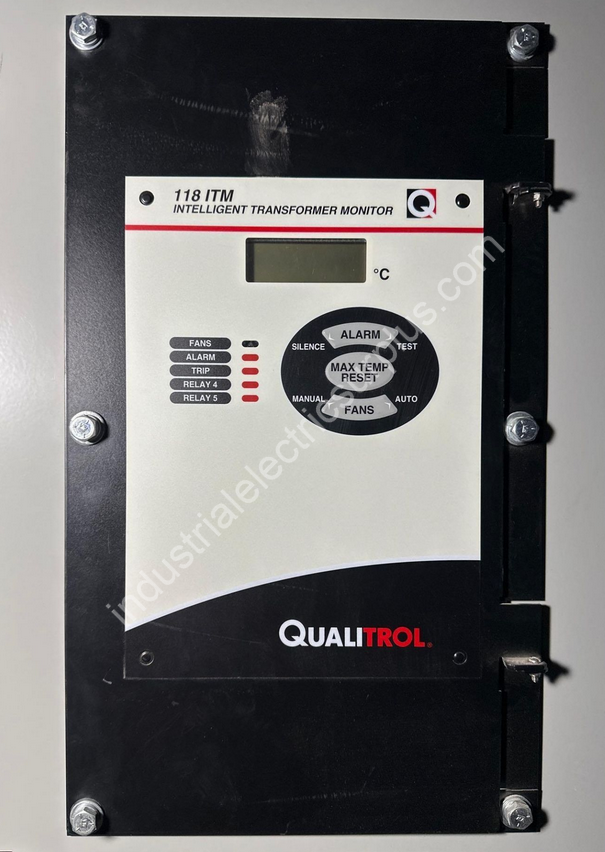

• Fan and Fan Controls Included
• UL Listed
• Manufactured 2022
• High Voltage Taps: 26,145V / 25,523V / 24,900V / 24,278V / 23,655V
• Weight: 29,000 lbs. each

---
