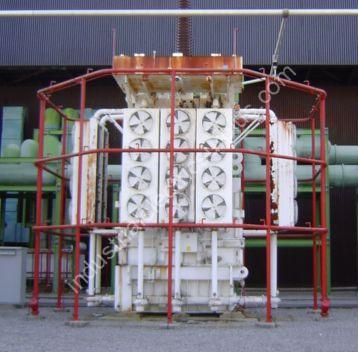

455/509.6 MVA Single Phase Nuclear Substation Transformer

---

• Manufacturer: Westinghouse Electric Corporation
• Asset ID: sub-006
• Category: Substation

---

Description

• 455/509.6 MVA Single Phase Nuclear Substation Transformer
• 455,000 KVA @ 55 degrees C
• 509,600 KVA @ 65 degrees C
• Primary: 500,000/288,675 Grd.Y Volts - Bil 1675 KV
• Secondary: 22,500 Volts - Bil 150 KV
• Impedance: 15.3 % at 455,000 KVA
• Single Phase
• 60 Hertz
• Class FOA
• 55 and 65 degrees C avg rise
• Total Weight: 532,500 LBS
• L. Spec. EBM1137-08
• Wiring Diagram: EBM1137-04
• Instruction Book: EBM1137-12
• Condition: Used

---
