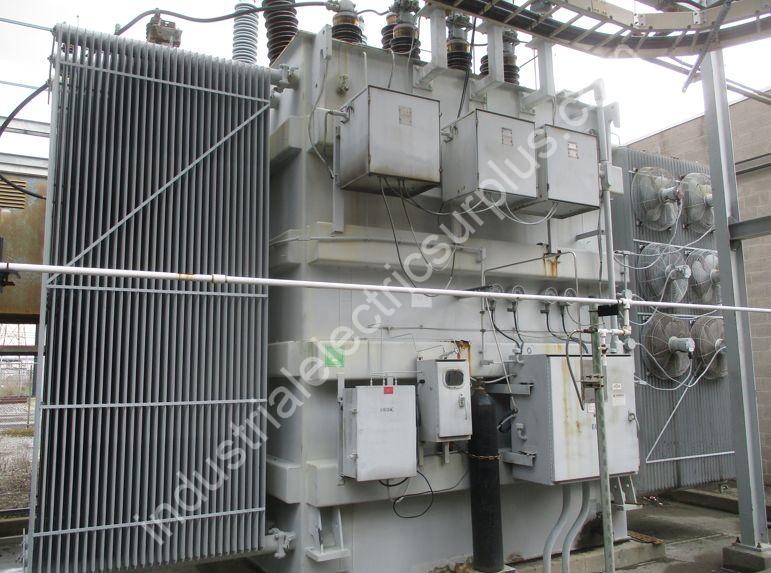

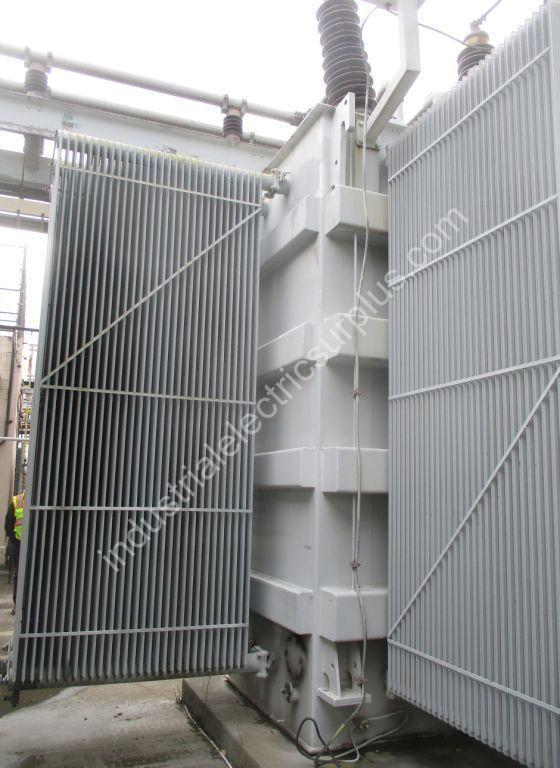

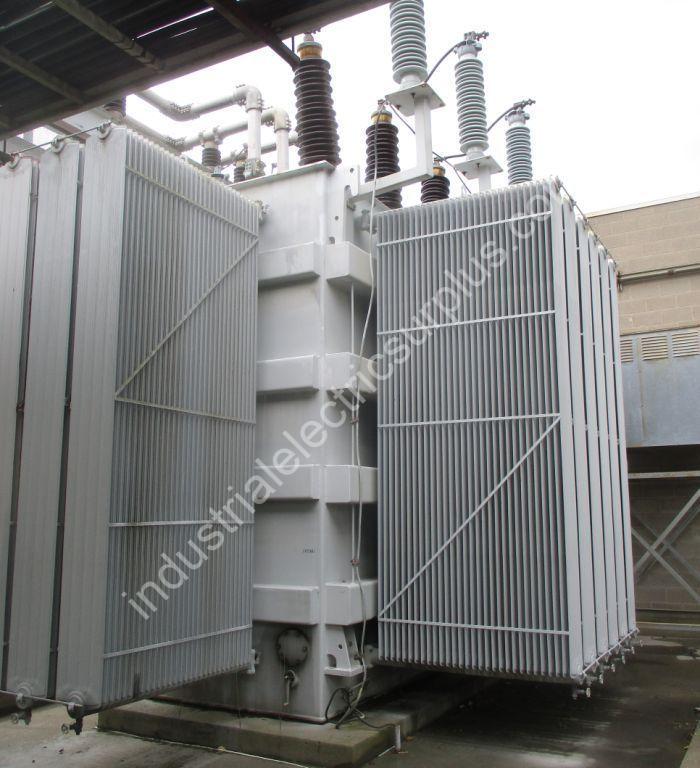

65 MVA RTE Power Transformers 115,000 Delta - 13,800Y

• Manufacturer: RTE ASEA
• Asset ID: pow-001
• Category: Power

Description

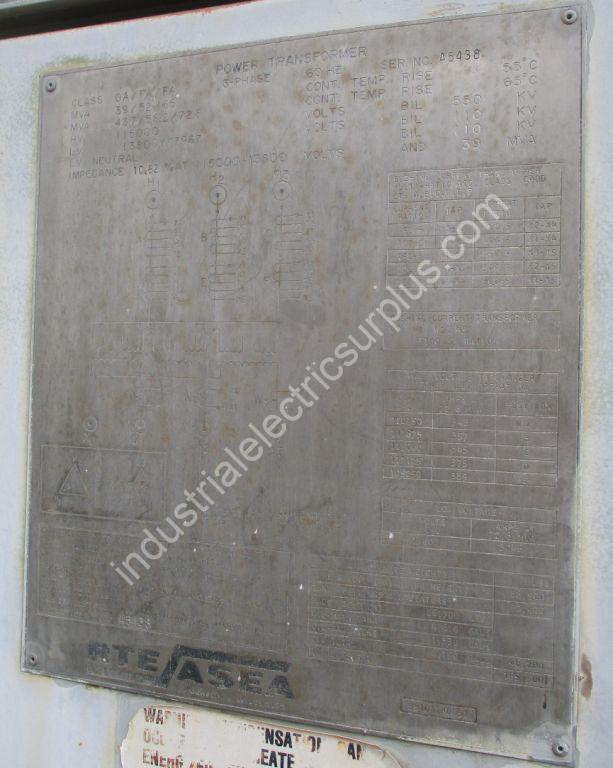

• RTE ASEA Power Transformer
• 39/52/65 MVA; 43/58/72 MVA
• Primary: 115,000 Delta with taps - BIL 550 kV
• Secondary: 13,800 Y/7967 @ 3046 Amps - BIL 110 kV
• 3 Phase, 60 Hertz
• Class OA/FA/FA
• Impedance 10.76%
• Rise 55/65°C
• Mineral Oil

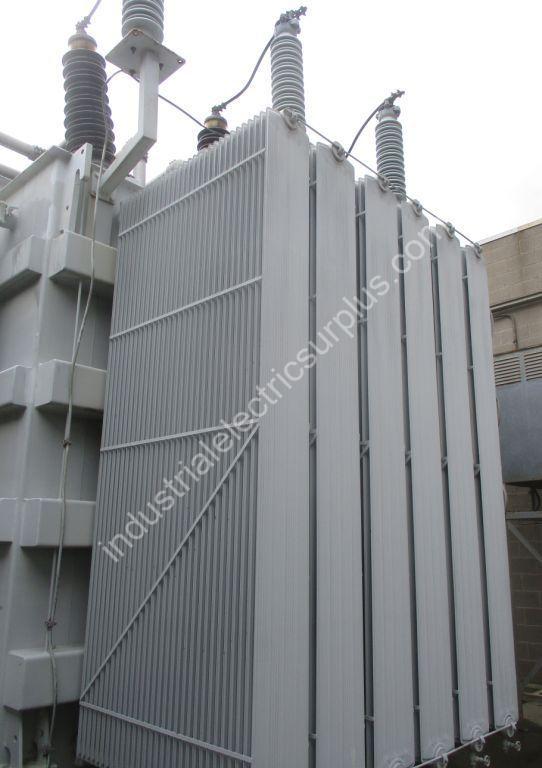

• HV Bushings: 3 Top Cover Mounted
• LV Bushings: 4 Top Cover Mounted
• Delta Wye Configuration
• HV Bushings: C400 Acc. Class Multi-Ratio CTs (2 sets per bushing)
• LV Bushings: Single Set CT Ratio 3100:5 on W1, W2, W3
• Standard Gauges & Valve Package

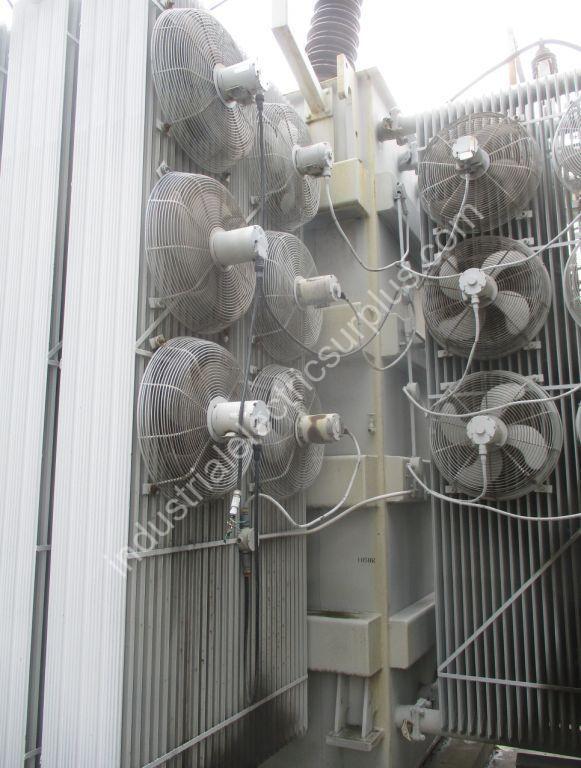

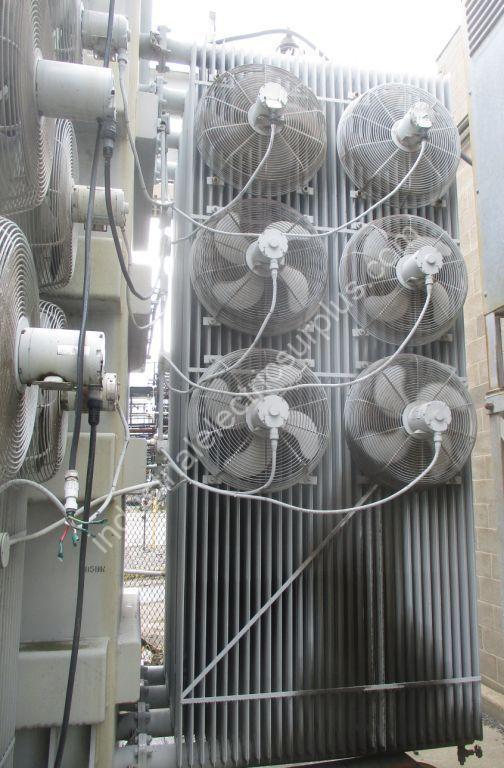

• Fans and Fan Controls
• Control Box with relays included
• HV Taps (5 options from 120,750V to 109,250V)
• Shipping Weight: 96,000 lbs (main tank less oil)
