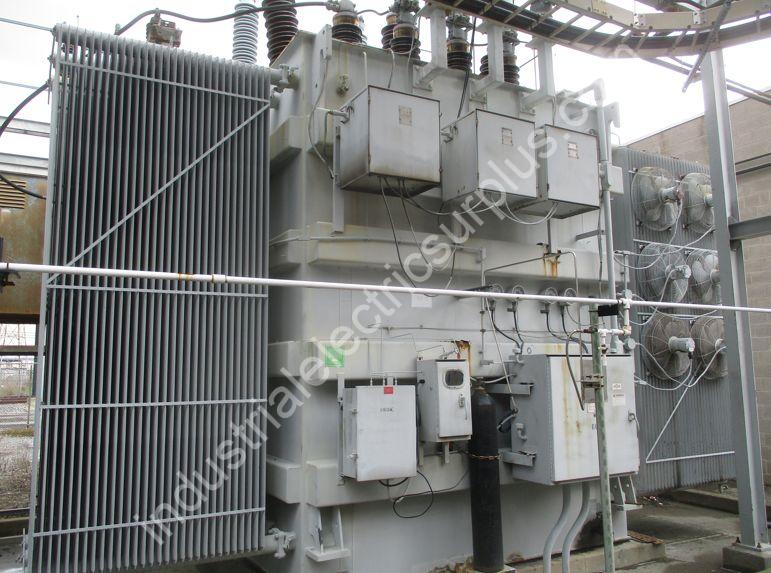

65 MVA RTE Power Transformers 115,000 Delta - 13,800Y

• Manufacturer: RTE ASEA
• Asset ID: pow-002
• Category: Power

Description

• RTE ASEA Power Transformer
• 39/52/65 MVA
• 43/58/72 MVA
• Primary: 115,000 Delta with taps - BIL 550 kV
• Secondary: 13,800 Y/7967 @ 3046 Amps - BIL 110 kV
• 3 Phase
• 60 Hertz
• Class OA/FA/FA
• Impedance 10.76 %
• Rise 55/65 C
• Mineral Oil
• HV Bushings - 3 Top Cover Mounted
• LV Bushings - 4 Top Cover Mounted
• Delta Wye Configuration
• HV Bushings: C400 Acc. Class Multi-Ratio CT's 2 Sets per Bushing
• LV Bushings: Single Set CT Ratio 3100:5 on W1, W2, W3
• Standard Gauges & Valve Package

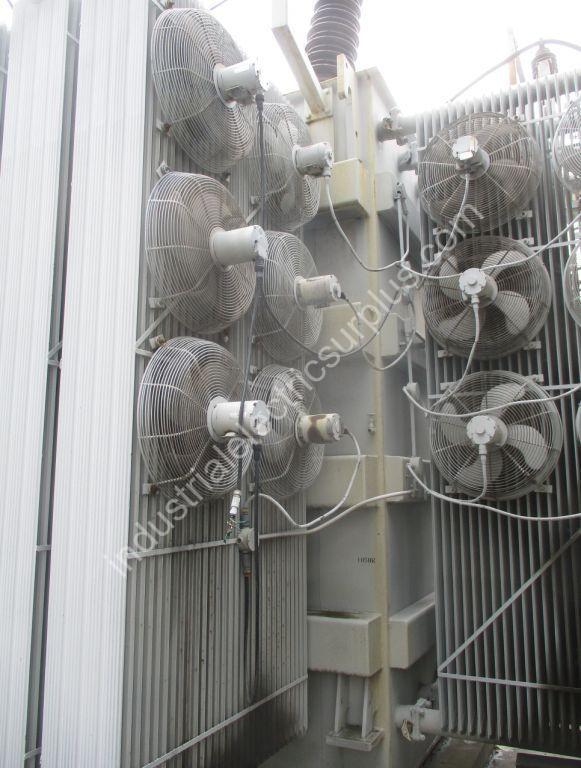

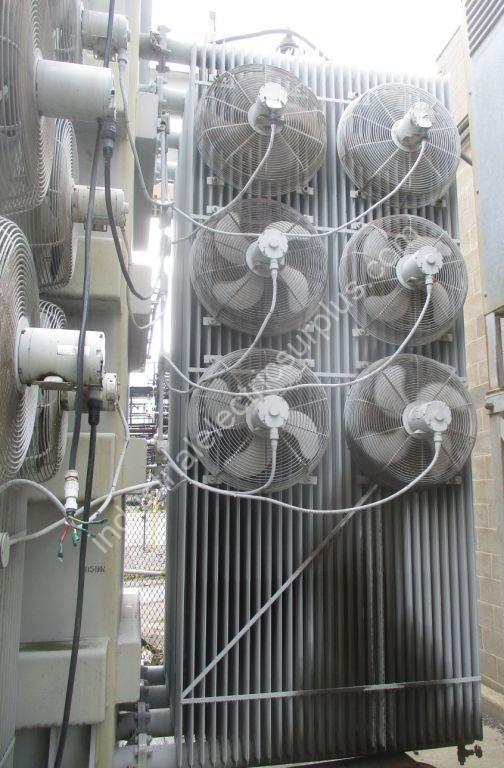

• Fans and Fan Controls
• Included Control Box with relays
• HV Taps (5 voltage options ranging 109,250 to 120,750 Volts)
• Shipping Weight (Main Tank less oil) = 96,000 lbs.
